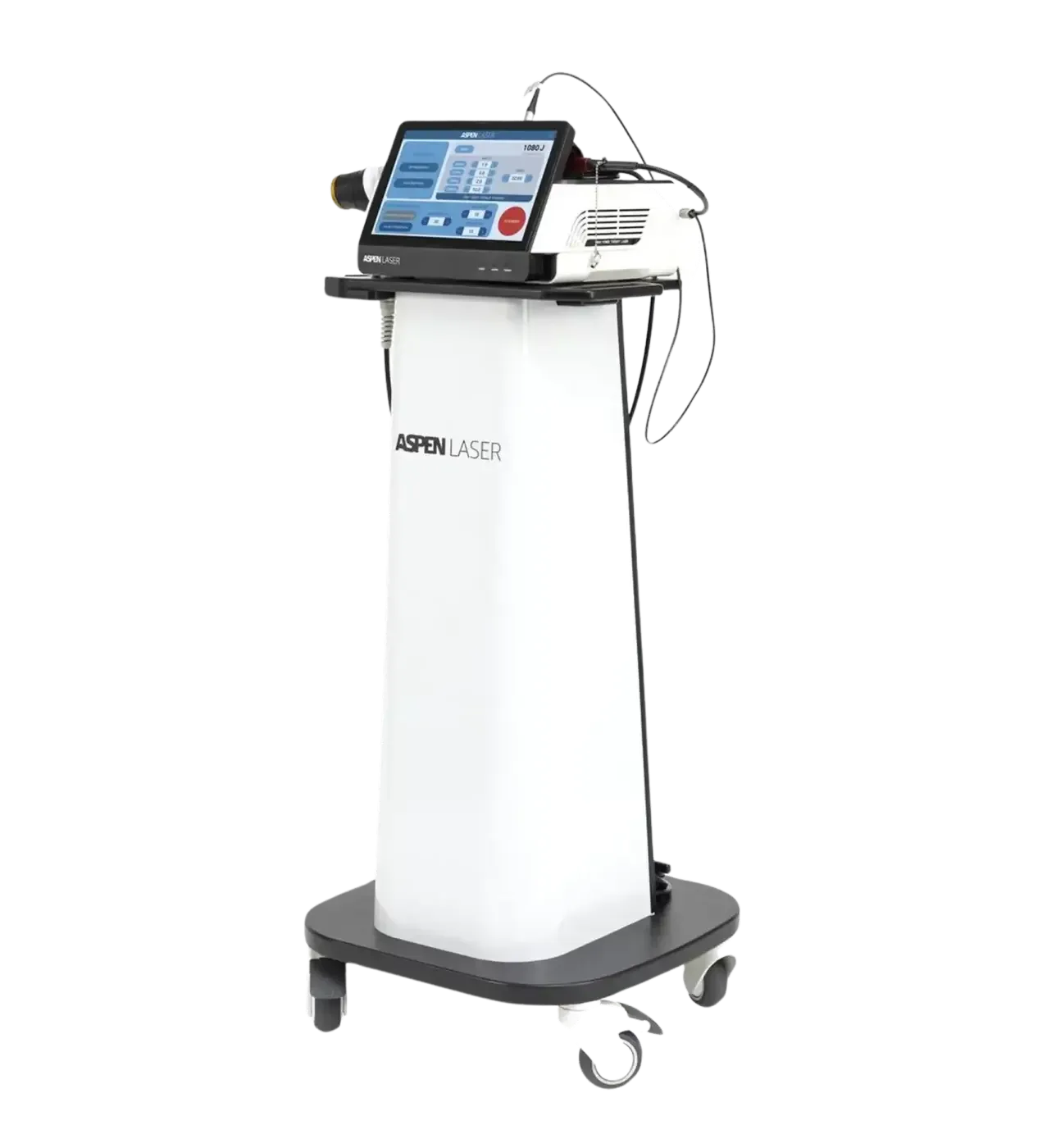

Aspen Laser Ascent Class IV Laser
Class IV Laser System
Aspen Laser

ASCENT™

ASPEN LASER

A compact, clinic-ready Class IV laser platform built for precision and adaptable protocols—engineered for providers who want clinical strength in a space-saving system.

Book a Consultation →
32W
Max Power
4
Wavelengths
CW
Or Pulse
15.4
LBS
01
Compact Clinical Footprint

Designed to deliver Class IV capability in a streamlined, space-saving system that fits into busy treatment rooms.

02
Multi-Wavelength Flexibility

Four wavelengths in one platform to support protocol variety and treatment-area flexibility.

03
Provider-Controlled Modes

Includes contact and non-contact treatment modes, plus pulse and continuous wave options from a touchscreen interface.

Light Science
FOUR THERAPEUTIC WAVELENGTHS
Ascent is built around a multi-wavelength platform to support deeper and broader protocol options. (If you want spot size / fiber options / dosing examples shown here, send the exact values and I’ll insert them without changing styling.)
670
nm
Protocol flexibility
810
nm
Provider-directed use
980
nm
Mode + depth options
1064
nm
Multi-layer delivery
Engineering
WHAT SETS ASCENT APART
A clinic-first Class IV platform with flexible wavelength configurations and operating modes.
01 / 06
PowerDose Diodes
Designed around high average power output to support consistent clinical operation.
02 / 06
MultiPlexer Technology
Multiple wavelengths emitted from a single output for shallow-to-deep delivery options in one workflow.
03 / 06
SmartMode Controls
Continuous wave (CW) plus pulsing emissions with broad frequency settings for protocol control.
04 / 06
Contact + Non-Contact
Includes contact and non-contact treatment modes to match provider preference and protocol design.
05 / 06
PRD Protocol Support
Patient response driven workflow concepts to help avoid under-dosing and support repeatable delivery.
06 / 06
Color Touchscreen
User-friendly touchscreen control designed for fast room-to-room clinical operation.
Clinic Ready

COMPACT BUILD
REAL CLINIC POWER

Ascent is positioned as an advanced, adaptable Class IV laser platform in a compact form factor—built for providers who want flexibility without sacrificing workflow speed.

11×11
INCH FOOTPRINT
32W
MAX OUTPUT
Pulse + CW Continuous Wave (CW) and Pulse operation modes.
Power Controls Adjustable power levels per wavelength for protocol flexibility.
Fiber + Connector 550µm fiber size with SMA905 connector (spec model shown below).
Safety Compliance Listed as CE0197 in the specs section.
Technical Data
SPECIFICATIONS
ParameterValue
CategoryClass IV Laser
ModelAscent Series 32 watt
SKUAL-P32x
Laser TypeGaAlAs Diode Laser
Dimensions11W × 11L × 7.5H (inches)
Weight15.4 lbs (7 kg)
Wavelengths670nm · 810nm · 980nm · 1064nm
Maximum Power32 watts
Operation ModesContinuous Wave (CW) and Pulse
Pulse Duration10μs–3s
Repetition Rate0.2Hz–20KHz
Fiber Sizes550 µm
Fiber ConnectorSMA905 Connector
Pilot BeamRed diode laser 635nm, power < 5mW
Control ModeColor Touch Screen
Voltage/Current110/220 VAC, 5A, 50/60 Hz
Safety ComplianceCE0197
About the Manufacturer
ASPEN LASER

Aspen Laser builds Class IV laser platforms for provider workflows—designed around adaptable wavelength configurations, protocol control, and clinic-ready operation.

Category Class IV Lasers
Product Page aspenlivewell.com/aspen-laser/ascent/
Consultations JAG Medical Solutions
Important Notice This page is for informational purposes and is not medical advice. Class IV lasers require proper training, screening, and safety procedures. Always follow the manufacturer’s instructions for use, contraindications, and laser safety requirements.
